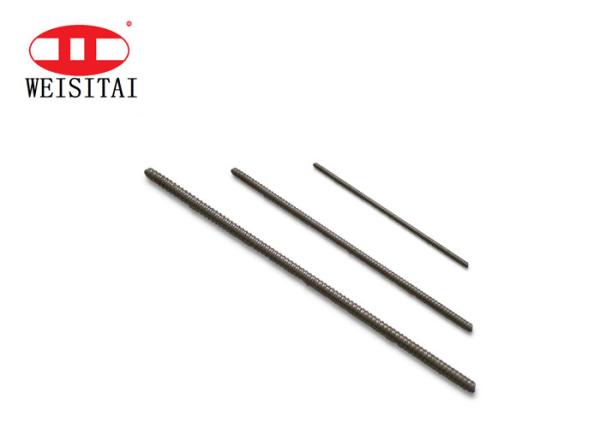

12MM Formwork Tie Rod System

Formwork Tie Rod Accessories #45 Steel Tie Rod 10/12mm

◆Product Overview

Formwork tie rod performs as the key important member in tie rod system, holding formwork panels. Usually used together with wing nut, waler plate, water stop, etc. Also it is enbeded in concrete used as lost part.

WST formwork system tie rods are made of Q235 steel or 45# steel and with self finish , galvanized finish or HDG finish. they are relatively strong in construction and used in industrial as well as housing sectors. With accurate dimension and high tensile strength, our tie rods have been exported to more than 33 countries. All formwork tie rod accessories also available in our factory.

◆Product Parameter

Tie rod types	12mm Tie Rod
Pics
Material	45# steel
Diameter	10/12mm
Pitch	6.35mm
Length	0-6m
Weight	1.5kg
Finish	Natural , Electric galvanized
Color	Original self color, Silver,Golden
Craft	Cold rolled
Strength	45KN
Other name	Formwork tie bar,Formwork waterstop tie rod

◆Product Advantage

1. Various size and finish:Match all your needs

2. Various material: Q235 steel, 45# steel and PSB830 hot rolled steel are all available

3.Rolling wire:high-precision thread rolling

4.Cut off:ensure the specifications of each workpiece

◆Product Test

Tested Product: #45 Steel 10/12mm Tie Rod

Test Institute:Product Quality Supervision And Inspection Institute

Test Result:The formwork tie rod breaks at 45KN,the formwork tie nut keep well

#45 Steel Tie Rod

Cool rolled Formwork Tie Rod

12mm Formwork Tie Rod System

12MM Formwork Tie Rod System Images
